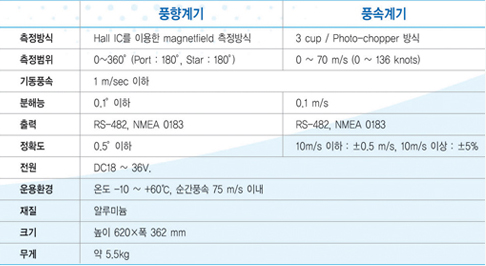

ANEMOMETER & ANEMOSCOPE, 풍향풍속계

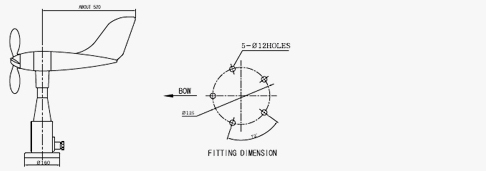

AT-100 (WIND TRANSMITTER)

WIND TRANSMITTER 장비는 신호 전송기에서 외부로 향과 풍속 신호를 동시에 제공한다.
측정된 풍속과 풍향은 신호변환기에 의해 디스플레이 또는 저장을 위해아날로그 신호가
RS485 / NMEA0183 신호로 출력되어, 타장비와 쉽게연동이 가능하다.

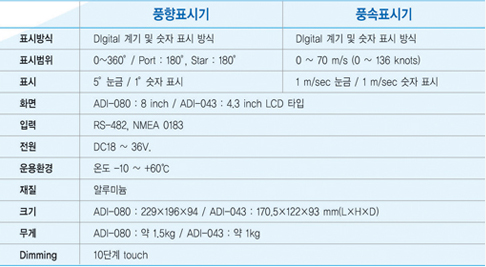

ADI-080 / 043 (WIND INDICATOR)

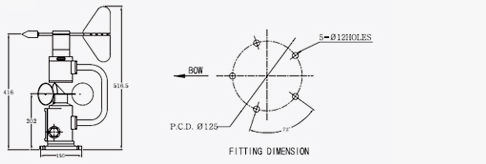

AT-200 (VANE TYPE)

Start of wind direction axis: Wind speed more than 1.0m/s at 90

Power source: AC110V / 220V 50Hz or 60Hz / DC24V

Wind speed
Starting wind speed: 1.0m/s Maximum permissible wind speed: 70m/s

Installation position: Radar mast

AT-130 (3-CUP TYPE)

Start of wind direction axis : Wind speed more than 1.0m/s at 90

Power source: AC110V / 220V 50Hz or 60Hz / DC24V

Wind speed
Starting wind speed: 1.0m's Maximum permissible wind speed: 70m/s

Installation position: Radar mast

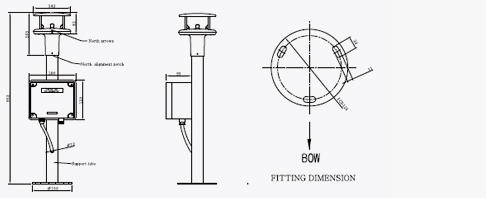

AT-300 (ULTRA-SONIC TYPE)

Ultra-sonic type transmitter need not rotation-Part.
And Ultra-sonic is used navigation for the Polar regions.

Start of wind direction axis : Wind speed more than 0.1m/s

Power source: DC24V

Wind speed Range: 0-60m/s / Communication signal type RS422

Starting wind speed: 1.0m/s

Operation Temp Range: -35°C to +70°C

Installation position: Radar mast

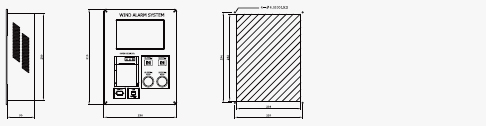

AC-WAS100

Power Supply : DC24V

Wind direction : Screen(PORT 0-100. , STBD 0-180. )

Wind speed : Screen(0-60m/s or 0-115knot)

Installation position: Cargo Control Room

Alarm : Visual(Screen), Audible(Buzzer)

Relay Contact : Two output(Power DC24V/1.5A)

Recoder : Paper(Printer) / Digital(Memory)

Accessories : Electric Horn



AC-D10

Power Supply : DC24V

Wind direction : 7 Segment 3 Digits
LED Lighting PORT-0-180. STBD-0-180.

Wind speed : 7 Segment 3 Digits(0-60m/s or 0-115Knot)

Installation position: Wheel House Gauge Board

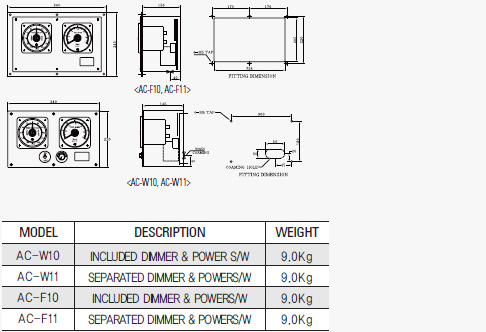

AC-W/F (ANALOG TYPE)

Wind direction
: Synchro motor type(AC110V/220V 50Hz or 60Hz) / PORT 0-180. , STBD 0-180.

Wind speed
Moving-coil voltmeter type / 0-60m/s or 0-115knot

Installation position: Wheel House Gauge Board

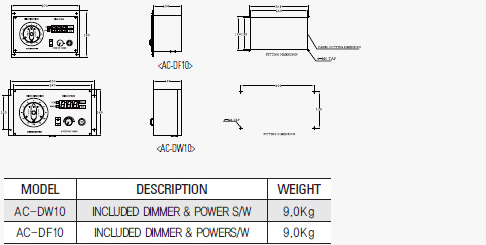

AC-DF/DW 10
(ANALOG AND DIGITAL COMBINED TYPE)

Wind direction : Synchro motor type(AC110V / 220V 50Hz or 60Hz)
/ PORT 0-180. , STBD 0-180.

Wind speed : 7Segment 3Digits(0-60m/s or 0-115Knot)

Installation position: Wheel House Gauge Board

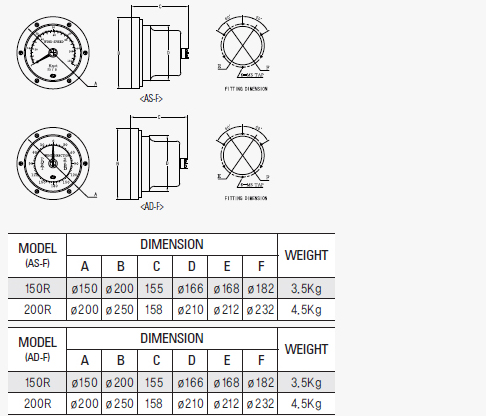

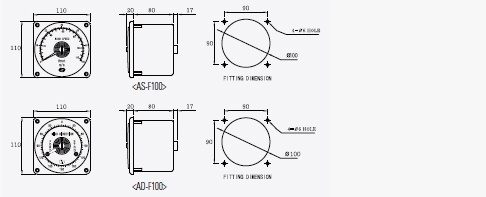

AS-F, AD-F

Wind direction : AC110V / 220V 50Hz or 60Hz / DC24V
/ PORT 0-180. , STBD 0-180.

Wind speed : Moving-coil voltmeter type(0-60m/s or 115knot)

Installation position: Wheel House Gauge Board

AS-F, AD-F

Wind direction : Synchro motor type(AC110V / 220V 50Hz or 60Hz)
/ PORT 0-180. , STBD 0-180.

Wind speed: Moving-coil voltmeter type 0-60m/s or 0-115knot

Installation position: Wheel House Gauge Board

RUDDER ANGLE INDICATOR

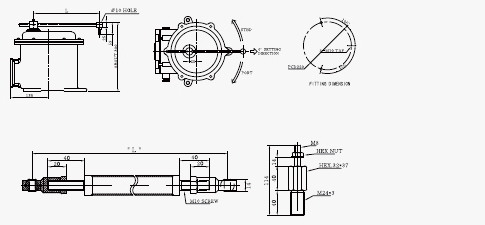

RT-472

Power Source : AC110V / 220V 50Hz or 50Hz / DC24V

Accessories : Lever arm, Connection Rod

Installation position : Steering gear room

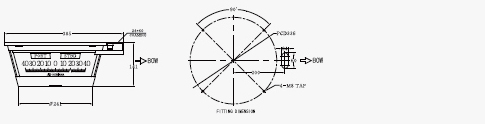

3C-200R

Power Source : AC110V / 220V 60Hz or 50Hz / DC24V

Accessories : Illumination Lamp, Dimmer S/W

nstallation position : Wheel House Ceiling

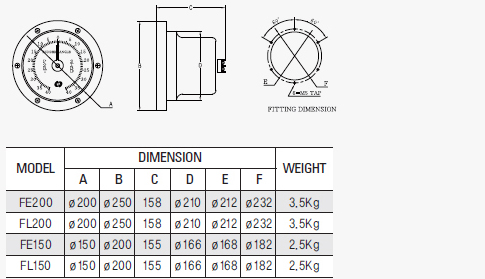

FE/FL-150, 200R (FLUSH TYPE)

Power Source : AC110V / 220V 60Hz or 50Hz / DC24V

Accessories : Illumination Lamp, Dimmer S/W

Installation position
Wheel House Gauge Board, Bridge Wing console

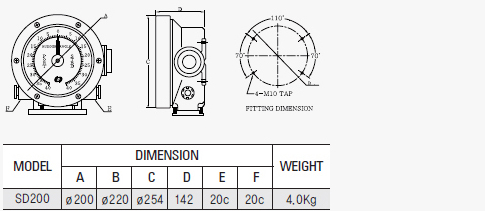

SD-200R (SURFACE TYPE)

Power Source : AC110V / 220V 60Hz or 50Hz / DC24V

Accessories : lumination Lamp, Dimmer S/W

Installation position : Bridge Wing, Steering Gear Room

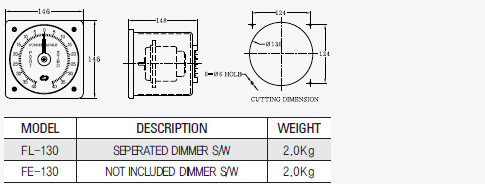

FL/FE-130R (FLUSH TYPE)

Power Source : AC110V / 220V 60Hz or 50Hz / DC24V

Accessories : Illumination Lamp, Dimmer S/W

Installation position: Engine Control Room, etc.


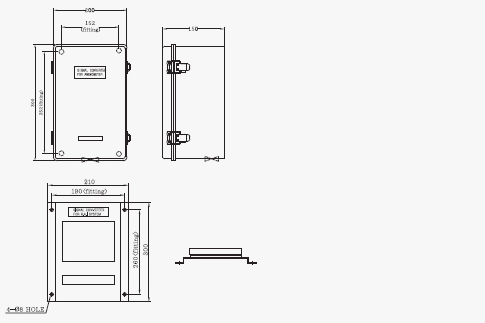

SC-230 / SC-P230

Power Source : AC110V / 220V 60Hz or 50Hz

Output Signal : NMEA0183(RS422)

Installation position: Wheel House Console

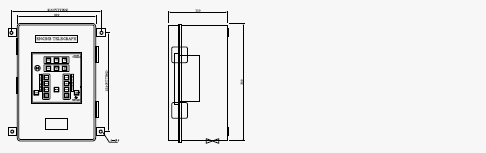

ENGINE ORDER TELEGRAPH

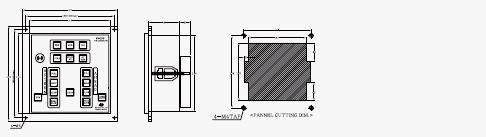

EP-040/041 (FLUSH TYPE)

Communication : One-way system(optional: Two-way)

Input Source : DC24V

Output Signal : NMEA 0183(RS422)

State Alarm Device : Buzzer

Installation position : Wheel House Console / Engine Control Room

EP-042 (WALL MOUNT TYPE)

Communication : One-way type system(optional : Two-way)

Input Source : DC24V

Output Signal : NMEA0183(RS422)

State Alam Device : Bell

Installation position : Engine Machinery Side


EH-010 (FLUSH TYPE)

Communication : Two-way system

Input Source : DC24V

Output Signal : NMEA0183(RS422)

State Alam Device : Buzzer

Installation position : Wheel House Console / Engine Control Room



SIGNAL INTERFACE(OPTION)

Output signal : NMEA0183(RS422) E/T POWER FAIL

Interfaced Equipment: VDR

SHAFT R.P.M SYSTEM

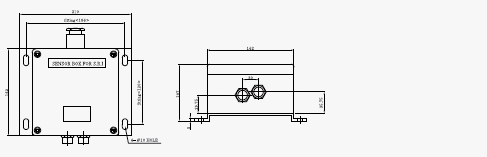

HS-SB

Specification : Proximity Sensor type

Power Source : DC24V

Output Signal : Pulse Signal

Installation position : Near by Main Engine Shaft Gear

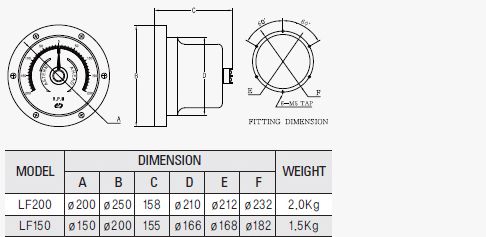

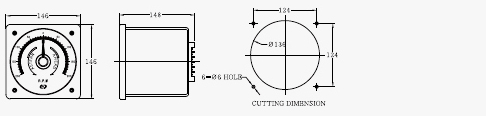

LF-150,200A(FLUSH TYPE)

Specification : Volt meter type

Power Source : DC24V

Accessories : Illumination Lamp, Dimmer S/W

Installation position : Wheel House Gauge Board

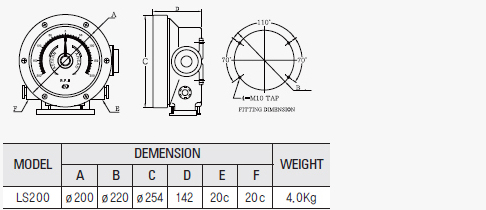

LS-200A

Specification : Volt Meter type

Power Source : DC24V

Accessories : Illumination Lamp, Dimmer S/W

Installation position : Bridge Wing

LF-130A (FLUSH TYPE)

Specification : Volt Meter type

Power Source : DC24V

Accessories : Illumination Lamp, Dimmer S/W

Installation position : Engine Control Console

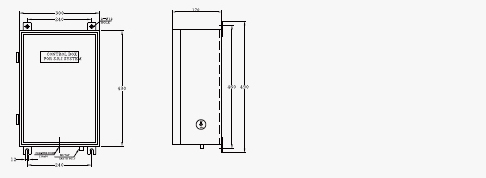

HS-CB

Specification : Control P.C.B Type

Power Source : DC24V

Accessories : Counter for r.p.m

Signal output : VDR
